How To Use Jumper Cables

---

A dead battery is one of the most common reasons a vehicle won't start. Whether you accidentally left your headlights on, a door wasn't fully closed, or your battery is simply old, knowing how to properly use jumper cables can save you time, money, and frustration. However, using jumper cables incorrectly can damage electrical components, create sparks, cause battery explosions, or even result in personal injury. In this guide, we'll explain what jumper cables are, when to use them, how to connect them correctly, and important safety tips every DIYer should know.

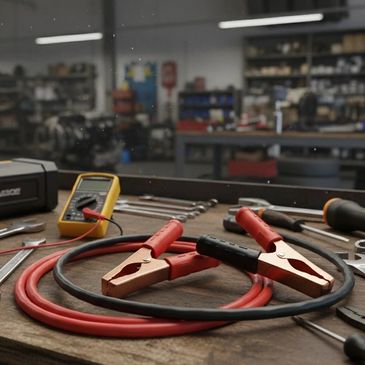

Jumper cables are heavy-duty electrical cables used to transfer power from a good battery to a discharged battery. They typically have two color-coded cables:

Red Cable = Positive (+)

Black Cable = Negative (-)

The cables allow a vehicle with a healthy battery to provide enough power for another vehicle to start.

Jumper cables can be used when:

• The battery is discharged but otherwise healthy.
• Interior lights are dim or not working.
• The starter clicks but does not crank.
• The vehicle was left sitting for an extended period.
• Lights or accessories were left on and drained the battery.

Jumper cables should NOT be used if:

• The battery is cracked, leaking, swollen, or frozen.
• There is a strong sulfur or rotten egg smell.
• Battery terminals are severely damaged.
• The vehicle uses a voltage system different from 12 volts.

For most passenger vehicles:

• Minimum length: 16 feet
• Recommended length: 20 feet
• Recommended wire size: 4 to 6 gauge

For trucks, SUVs, and larger engines:

• Recommended wire size: 2 to 4 gauge

Thicker cables transfer more current and perform significantly better than cheap, thin jumper cables.

Park the donor vehicle close enough for the cables to reach without touching vehicles together.

Turn both vehicles off.

Set the parking brake on both vehicles.

Place transmissions in Park or Neutral.

Turn off all electrical accessories such as headlights, radio, air conditioning, and heated seats.

Wear safety glasses and gloves whenever possible.

Follow these steps exactly in order.

Locate the positive terminal on the dead battery.

Connect one red clamp to the positive (+) terminal.

Connect the other red clamp to the positive (+) terminal on the good battery.

Connect one black clamp to the negative (-) terminal on the good battery.

Connect the remaining black clamp to a clean, unpainted metal part of the disabled vehicle's engine or chassis.

DO NOT connect the final black clamp directly to the dead battery's negative terminal.

This reduces the risk of sparks near the battery where explosive hydrogen gas may be present.

Start the donor vehicle first.

Allow it to run for 2 to 5 minutes.

Attempt to start the vehicle with the dead battery.

If the vehicle does not start, wait several more minutes and try again.

Once the disabled vehicle starts, allow both vehicles to run for several minutes.

Remove the cables in the reverse order:

1. Black clamp from engine ground.
2. Black clamp from donor battery negative (-).
3. Red clamp from donor battery positive (+).
4. Red clamp from repaired vehicle positive (+).

Avoid allowing the clamps to touch each other during removal.

Connecting positive to negative can:

• Destroy alternators
• Damage electronic control modules
• Blow fuses
• Damage battery sensors
• Cause sparks or fire

Always double-check cable placement before starting either vehicle.

Lead-acid batteries produce hydrogen gas, which is highly explosive.

Keep sparks, cigarettes, and open flames away from batteries.

Do not jump start a battery that is:

• Leaking
• Cracked
• Bulging
• Frozen

Replace the battery immediately.

Many hybrid and electric vehicles have unique jump-starting procedures.

Always consult the owner's manual before attempting to jump-start these vehicles.

Incorrect procedures can damage expensive electronic systems.

If a jump start doesn't work, the problem may not be the battery.

Common causes include:

• Failed starter motor
• Bad alternator
• Corroded battery terminals
• Blown fuse
• Faulty ignition switch
• Damaged battery cables
• Engine mechanical issues

This is where a basic OBD2 scanner becomes extremely useful for diagnosing vehicle problems.

Once the vehicle starts, drive for at least 20 to 30 minutes.

This allows the alternator to recharge the battery.

If the battery repeatedly dies after charging, it may need replacement or the charging system may require diagnosis.

Every driver and DIY mechanic should know how to properly use jumper cables. A quality set of jumper cables can quickly get you back on the road, but safety must always come first. Always verify positive and negative connections, follow the correct connection sequence, and inspect batteries for damage before attempting a jump start. Learning this simple skill can save you from expensive towing bills and help you assist others safely when they experience a dead battery.
